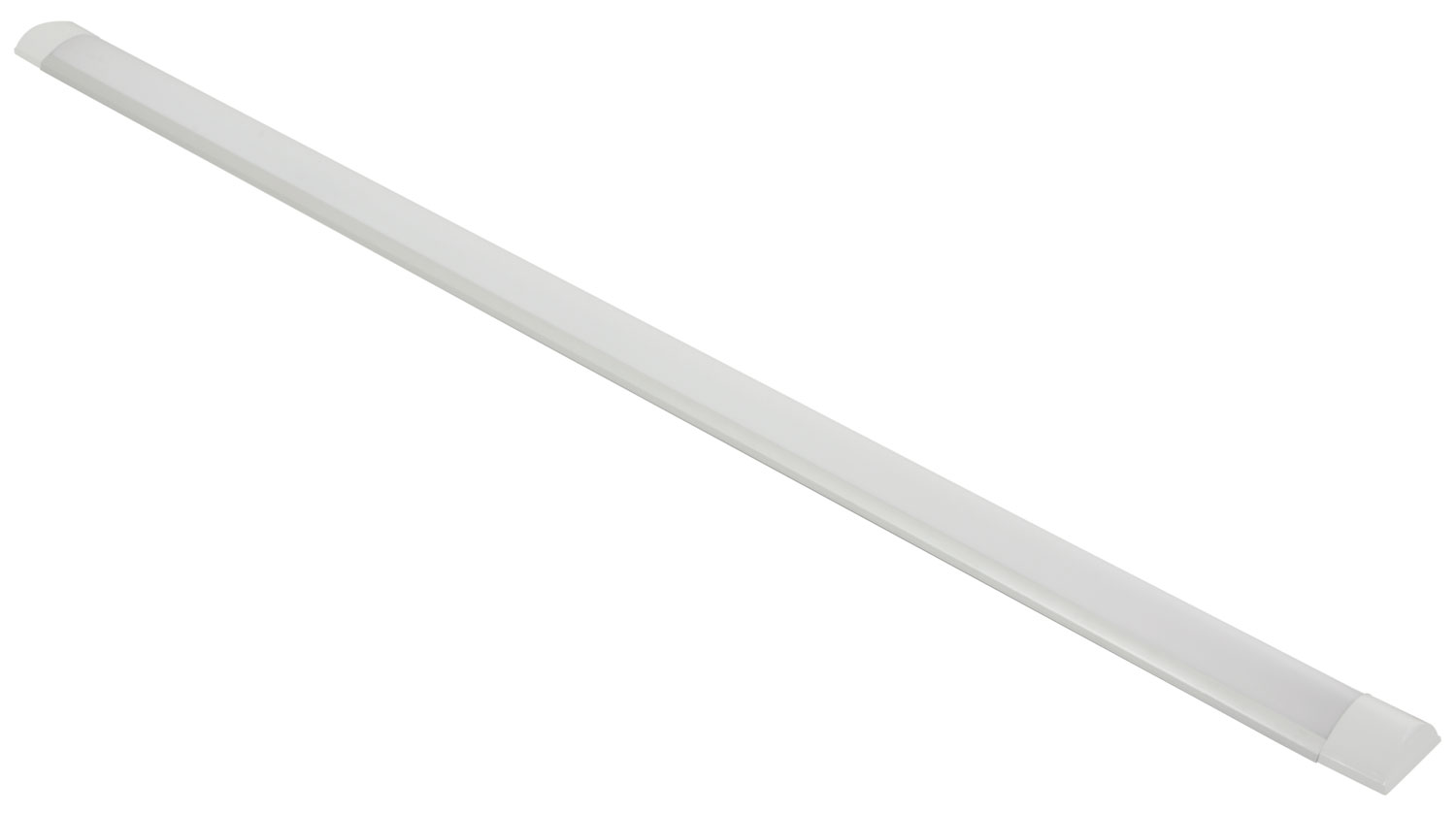

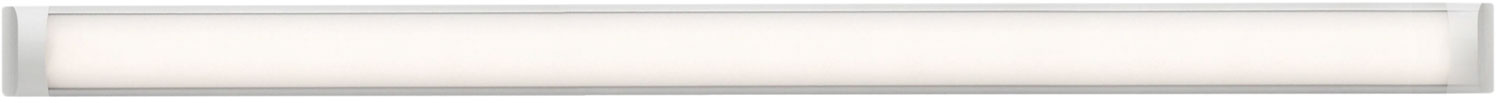

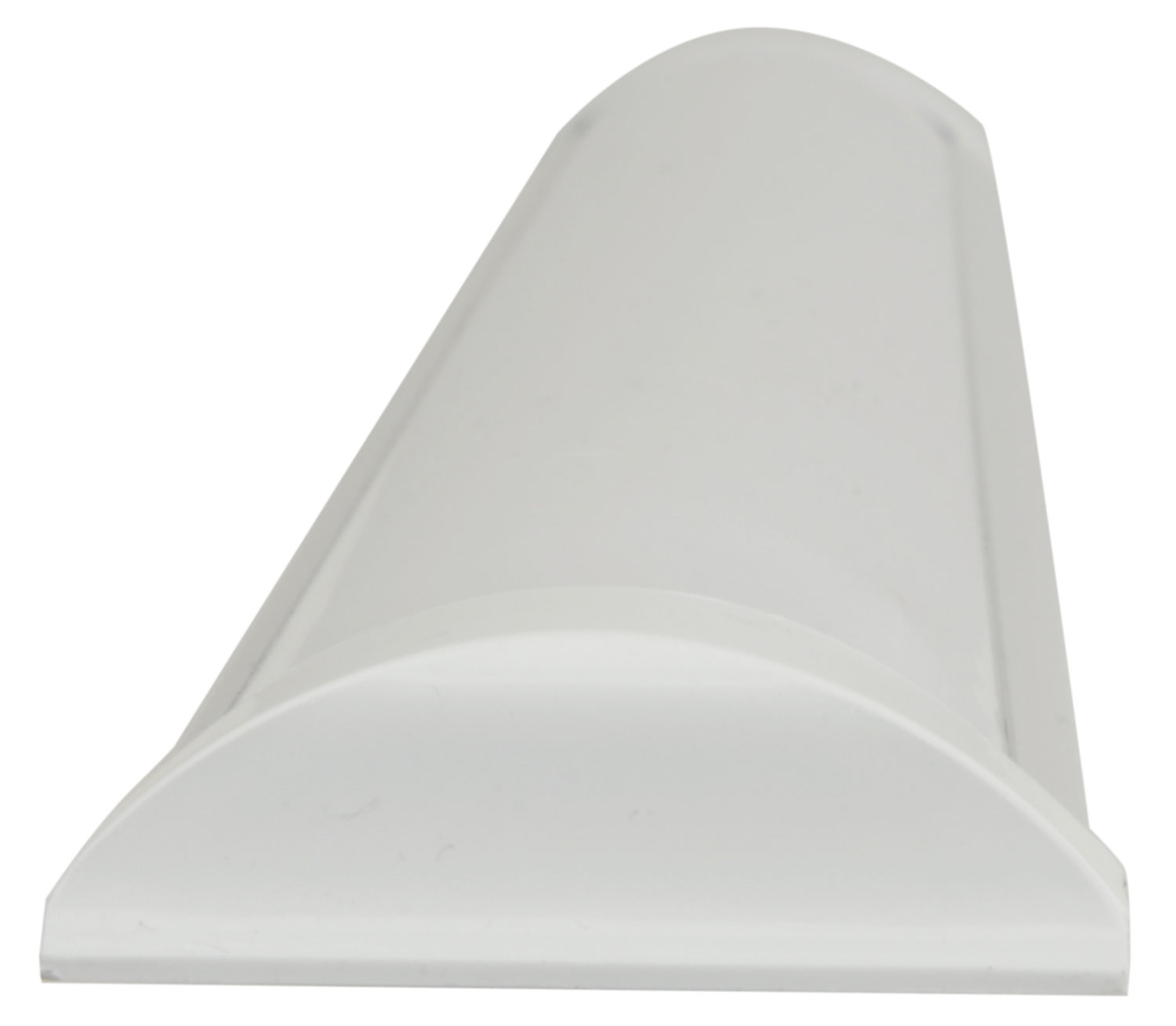

Low Profile LED Battens

154.610UK LB45-N
(1 reviews)

Surface mounting LED batten luminaire with diffused, even light output in a low profile housing. Supplied mounting clips can be fixed directly to a ceiling or wall or may be suspended from higher c...

  • Low profile 25mm height
  • Energy efficient SMD2835 LEDs
  • Supplied with surface mounting clips
Full description Find retailer
Description Version Packed
154.607UK
Low Profile LED Batten 36W Natural White 		Natural White 1.2m Box Label BW
154.608UK
Low Profile LED Batten 36W Cool White 		Cool White 1.2m Box Label BW
154.610UK
Low Profile LED Batten 45W Natural White 		Natural White 1.5m Box Label BW
154.611UK
Low Profile LED Batten 45W Cool White 		Cool White 1.5m Box Label BW

Low Profile LED Battens

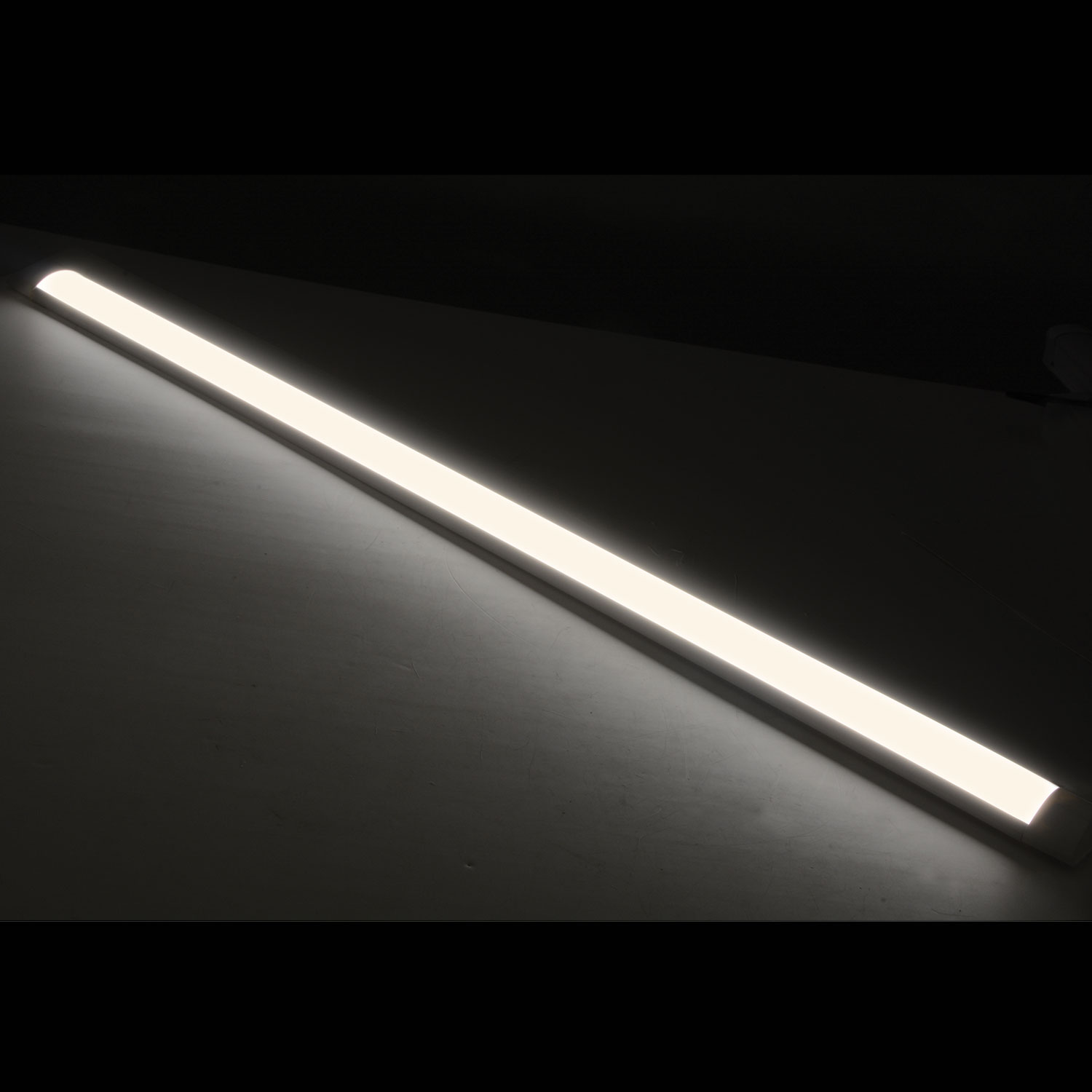

Surface mounting LED batten luminaire with diffused, even light output in a low profile housing. Supplied mounting clips can be fixed directly to a ceiling or wall or may be suspended from higher ceilings. Provides a more efficient and neater alternative to traditional fluorescent light fittings.

  • Low profile 25mm height
  • Energy efficient SMD2835 LEDs
  • Supplied with surface mounting clips
  • Non-dimmable

Specification : Common

  • Power supply 230Vac, 50Hz
  • Voltage 65-78Vdc
  • Current 430mA
  • IP rating IP20
  • Beam angle 110° (transverse)
  • Colour rendering index (CRI, Ra) >80
  • Power factor (230V, 50Hz) >0.9
  • LED type Epistar™ SMD2835
  • Average lifetime 35,000 hours
  • Dimming control Non-dimmable
  • Weight 540g

Specification : Versions

  154.607UK 154.608UK 154.610UK 154.611UK
Luminous flux 3082lm 3082lm 3400lm 3400lm
Energy consumption 36kWh/1000h 36kWh/1000h 45kWh/1000h 45kWh/1000h
Luminous efficacy 86lm/W 86lm/W 76lm/W 76lm/W
Power consumption 36W 36W 45W 45W
LED quantity 192 192 240 240
LED colour Natural white (4000K) Cool white (6000K) Natural white (4000K) Cool white (6000K)
Dimensions 1210 x 75 x 25mm 1210 x 75 x 25mm 1510 x 75 x 25mm 1510 x 75 x 25mm
Weight 540g 540g 660g 660g

Trade information

  154.607UK 154.608UK 154.610UK 154.611UK
Barcode / EAN 5015972183342 5015972132166 5015972132180 5015972186473
Package type Box Label BW Box Label BW Box Label BW Box Label BW
Package dimensions 84 x 1230 x 34mm 84 x 1230 x 34mm 84 x 1530 x 34mm 84 x 1530 x 34mm
Package weight 0.70kg 0.70kg 0.75kg 0.75kg
Package quantity 1 unit 1 unit 1 unit 1 unit
Carton dimensions 760 x 1250 x 175mm 760 x 1250 x 175mm 760 x 1550 x 175mm 760 x 1550 x 175mm
Carton weight 15.00kg 15.00kg 19.00kg 19.00kg
Carton quantity 20 packages 20 packages 20 packages 20 packages

In the box

The box for this item contains :

  • IP20 low profile LED batten
  • 2 x mounting clips
