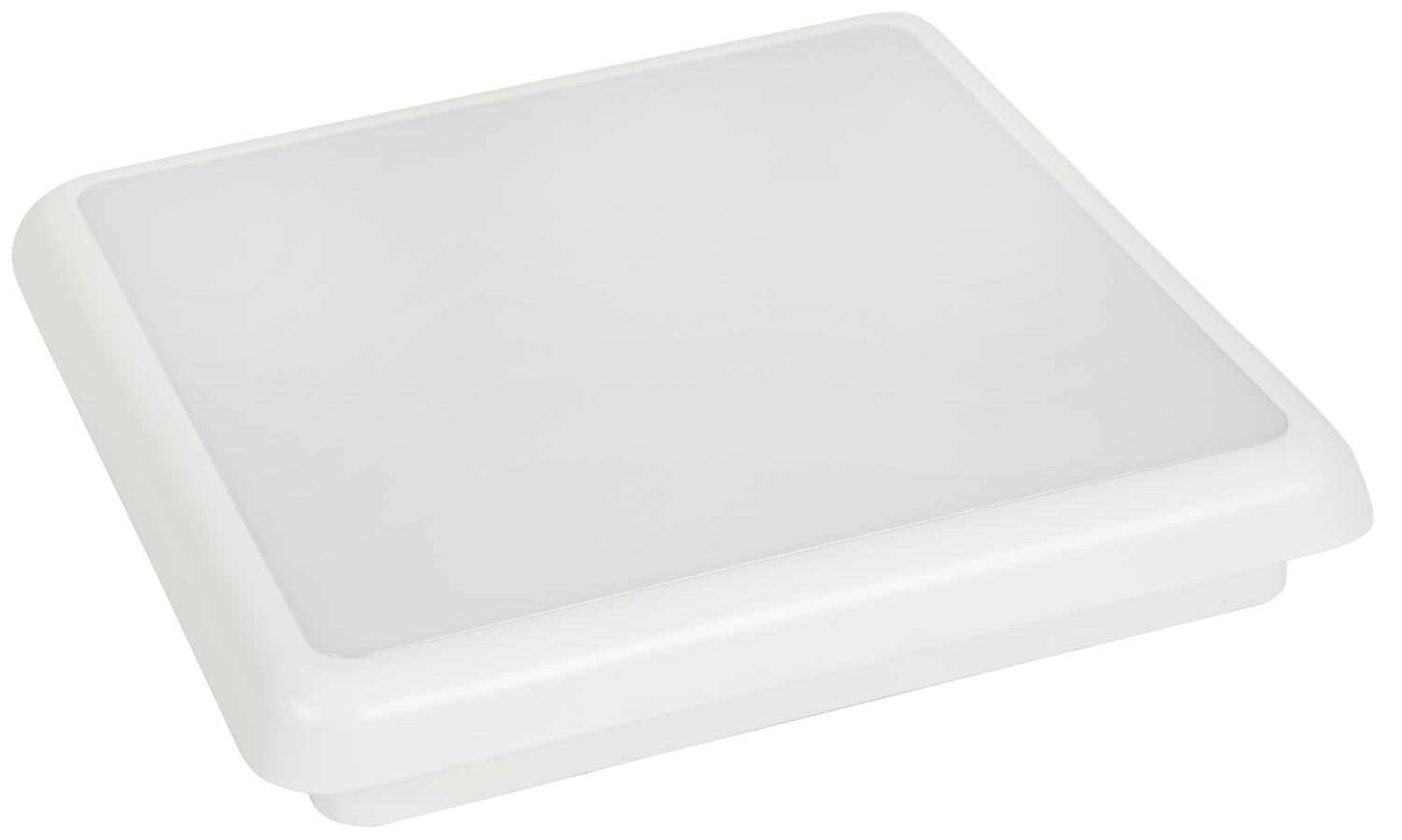

IP54 LED Ceiling Lights

156.092UK WDL12-C
Be the first to review

Surface mounted LED luminaire with a water resistant housing for humid indoor environments. The rounded square profile offers a neat, understated appearance and fixing to any surface is made easier...

  • IP54 water resistant housing
  • Low glare diffused light output
Full description Find retailer
Description Version Packed
156.091UK
IP54 LED Ceiling Light 12W NW 		Natural white Gift Box
156.092UK
IP54 LED Ceiling Light 12W CW 		Cool white Gift Box

IP54 LED Ceiling Lights

Surface mounted LED luminaire with a water resistant housing for humid indoor environments. The rounded square profile offers a neat, understated appearance and fixing to any surface is made easier with the included mounting bracket. Light output is diffused with a wide dispersion. Designed to provide glare-free and efficient illumination for home, commercial and public buildings.

  • IP54 water resistant housing
  • Low glare diffused light output

Specification : Common

  • Power supply 230Vac, 50Hz
  • Input current 70mA
  • Power consumption 12W
  • Energy consumption 12kWh/1000h
  • Power factor (230V, 50Hz) ?0.9
  • Output voltage 60-75Vdc
  • Output current 150mA
  • Protection Short-circuit, over-voltage, temperature
  • Beam angle 120°
  • Colour rendering index (CRI, Ra) ?80
  • LED type Epistar™ SMD2835
  • LED quantity 264
  • LED lifespan 40,000 hours
  • Housing material Polycarbonate (steel mounting plate)
  • IP rating IP54
  • Operating temperature range -20 to +45°C
  • Operating humidity range 0 - 90%
  • Dimensions 250 x 250 x 50mm
  • Weight 800g

Specification : Versions

  156.091UK 156.092UK
Colour temperature 4000K natural white 6000K cool white
Luminous flux 1000lm 990lm
Luminous efficacy 83lm/W 82lm/W

Trade information

  156.091UK 156.092UK
Barcode / EAN 5015972182208 5015972182185
Package type Gift Box Gift Box
Package dimensions 260 x 260 x 55mm 260 x 260 x 55mm
Package weight 0.94kg 0.94kg
Package quantity 1 unit 1 unit
Carton dimensions 550 x 620 x 300mm 550 x 620 x 300mm
Carton weight 20.00kg 20.00kg
Carton quantity 20 packages 20 packages

Support

Instruction manual
For 156.091UK (489KB)
Instruction manual
For 156.092UK (489KB)
