High Power Track Lights

156.195UK TLF25B-45N
Be the first to review

Track light with COB LED light source housed in an aluminium head. The LED head has a prismatic, anti-glare reflector for defined yet soft illumination. Designed for Lyyt "H" lighting track with an...

  • Powerful & efficient COB light source
  • Anti-glare reflector
  • 3-wire single circuit "H" track compatible
Full description Find retailer
Description Version Packed
156.191UK
25W Track Light White 45deg NW 		White 45° NW Box Label BW
156.192UK
25W Track Light White 45deg CW 		White 45° CW Box Label BW
156.195UK
25W Track Light Black 45deg NW 		Black 45° NW Box Label BW
156.196UK
25W Track Light Black 45deg CW 		Black 45° CW Box Label BW

High Power Track Lights

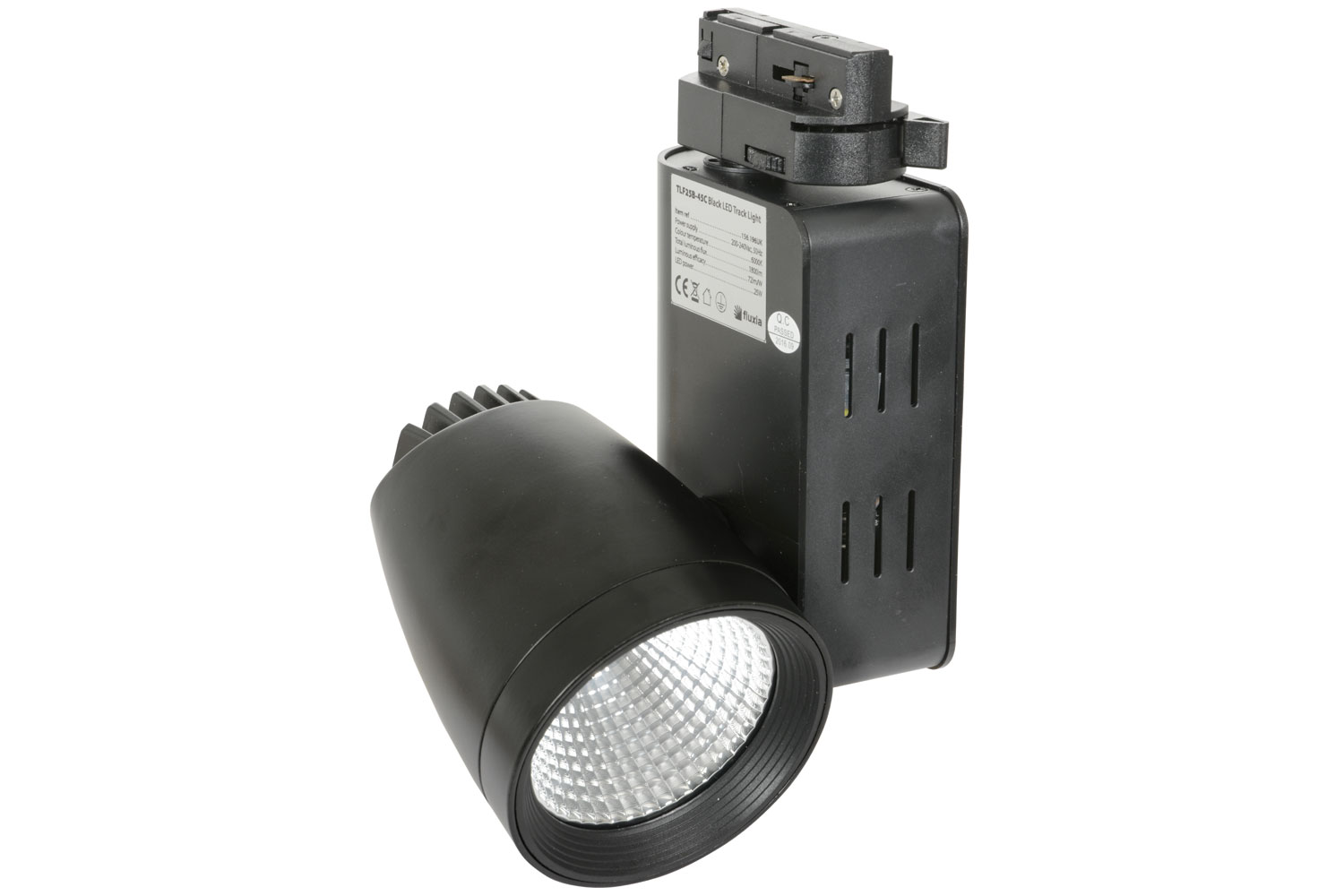

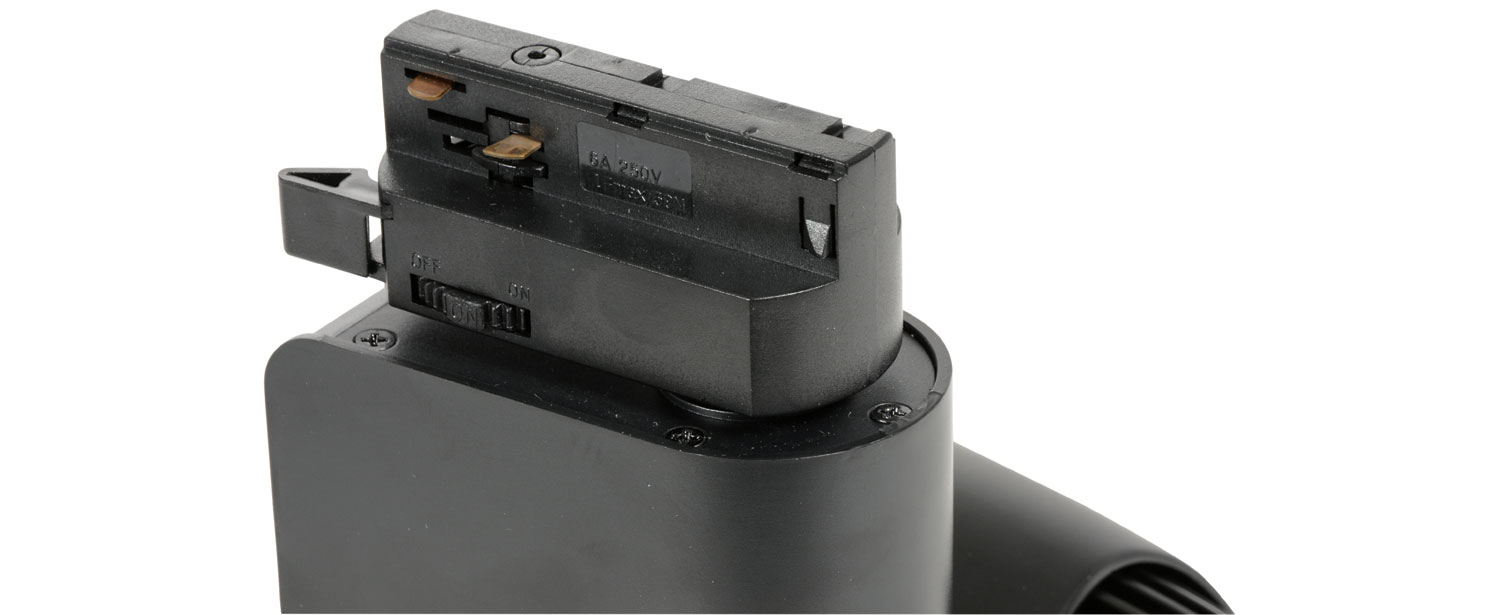

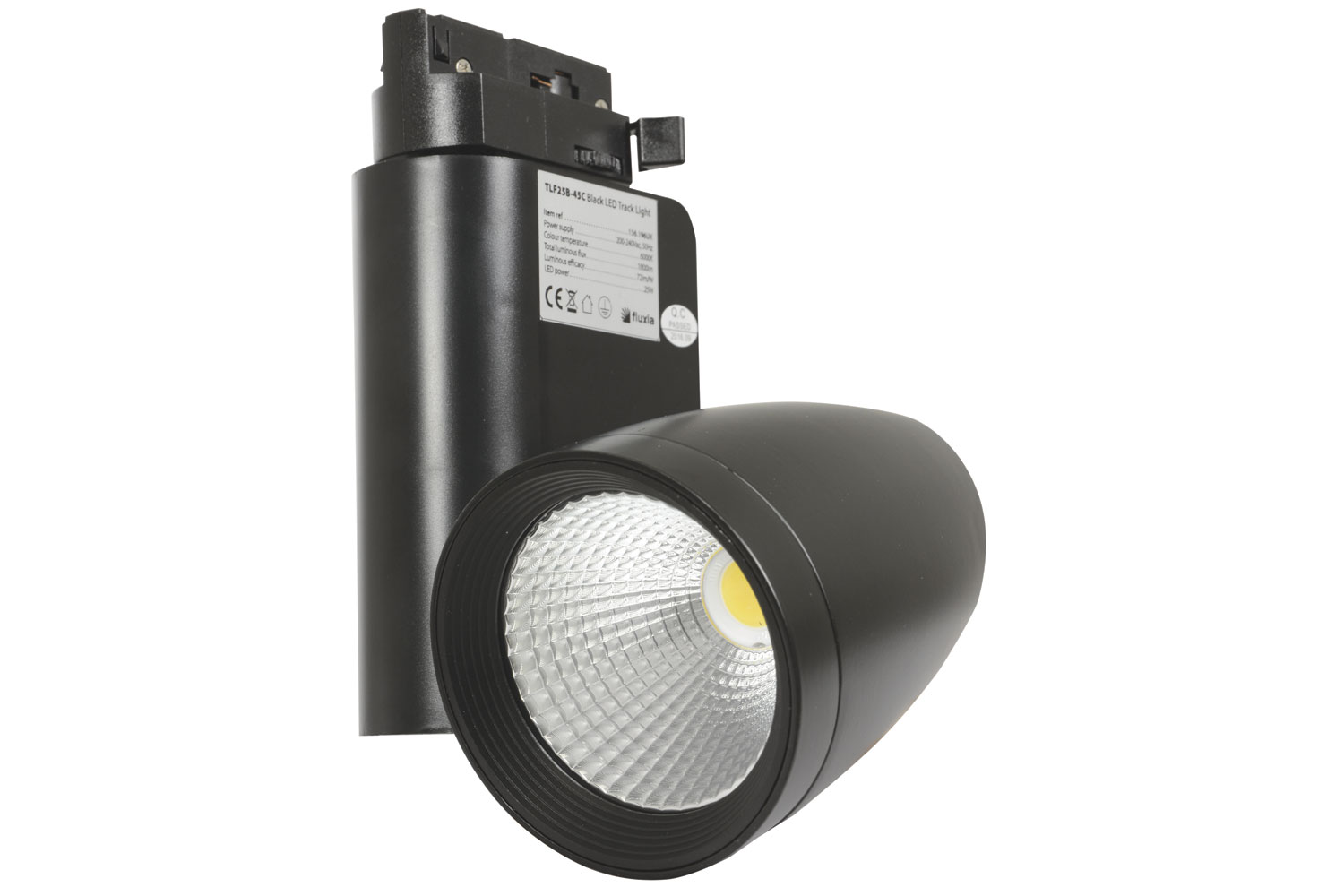

Track light with COB LED light source housed in an aluminium head. The LED head has a prismatic, anti-glare reflector for defined yet soft illumination. Designed for Lyyt "H" lighting track with an edge wheel on/off switch built into the connecting base. Side-mounted to its driver housing, the head has full tilt and rotation adjustment to highlight products, exhibits or artwork.

  • Powerful & efficient COB light source
  • Anti-glare reflector
  • 3-wire single circuit "H" track compatible

Specification : Common

  • Power supply 200-240Vac, 50Hz
  • Power factor (230V, 50Hz) ?0.9
  • Power consumption 25W
  • Energy consumption 25kWh/1000h
  • Luminous flux 1800lm
  • Luminous efficacy 72lm/W
  • LED type COB
  • Dimming control Non-dimmable
  • Beam angle 45°
  • IP rating IP20
  • Colour rendering index (CRI, Ra) ?80
  • LED lifespan 40,000 hours
  • Switching cycles 15,000
  • Warm up time Instant full light
  • Operating temperature range -20°C to +45°C
  • Operating humidity range 0 - 90%
  • Dimensions 201 x 141 x 121mm
  • Weight 1.17kg

Specification : Versions

  156.191UK 156.192UK 156.195UK 156.196UK
Housing colour White White Black Black
Colour temperature 4000K (natural white) 6000K (cool white) 4000K (natural white) 6000K (cool white)

Trade information

  156.191UK 156.192UK 156.195UK 156.196UK
Barcode / EAN 5015972182338 5015972182352 5015972182376 5015972182390
Package type Box Label BW Box Label BW Box Label BW Box Label BW
Package dimensions 185 x 280 x 120mm 185 x 280 x 120mm 185 x 280 x 120mm 185 x 280 x 120mm
Package weight 1.09kg 1.09kg 1.09kg 1.09kg
Package quantity 1 unit 1 unit 1 unit 1 unit
Carton dimensions 580 x 590 x 260mm 580 x 590 x 260mm 580 x 590 x 260mm 580 x 590 x 260mm
Carton weight 17.00kg 17.00kg 17.00kg 17.00kg
Carton quantity 12 packages 12 packages 12 packages 12 packages

Support

Instruction manual
For 156.191UK (188KB)
Instruction manual
For 156.192UK (188KB)
Instruction manual
For 156.195UK (188KB)
Instruction manual
For 156.196UK (188KB)
