12" Passive Professional Speaker
170.209UK
CX-3008
A full range speaker enclosure made from premium Russian ply with custom drive units giving a wide bandwidth and smooth response for all styles of programme material. Multiple flying points are fit...
- Durable textured black paint finish
- 12 x M10 flying points
- Powder-coated steel grille lined with dust filter
| Description | |
|---|---|
|
170.209UK
CX-3008 passive professional speaker 12" 300Wrms |

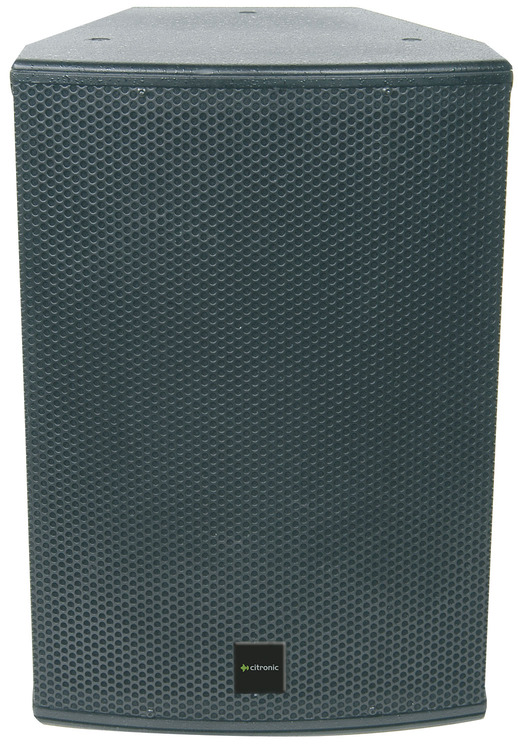

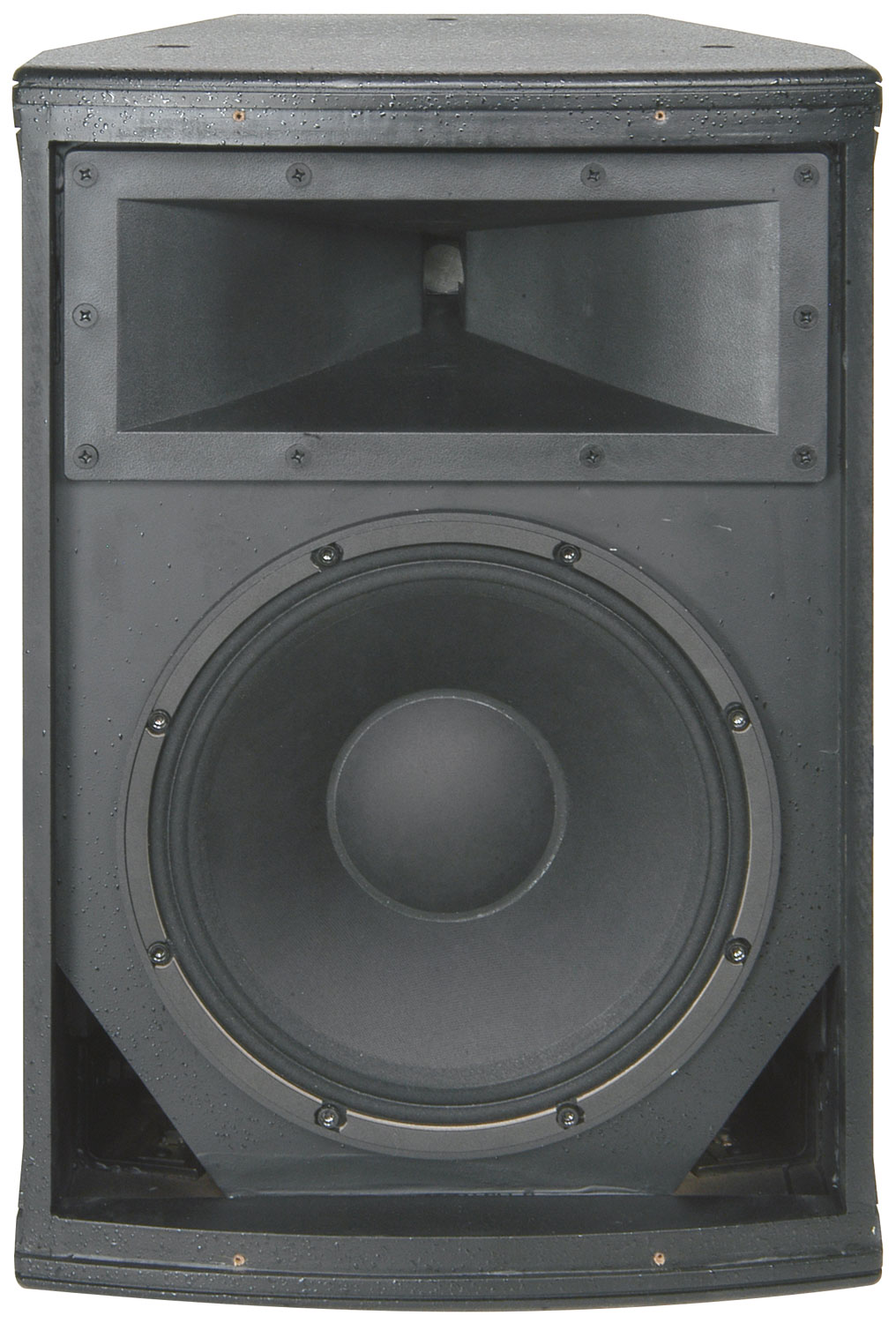

12" Passive Professional Speaker
A full range speaker enclosure made from premium Russian ply with custom drive units giving a wide bandwidth and smooth response for all styles of programme material. Multiple flying points are fitted as standard for ease of installation and integration into arrays. Computer-aided design for optimal tuning of enclosures delivering efficient output and bottom end response with strategic bracing to reduce resonance and improve projection.
- Durable textured black paint finish
- 12 x M10 flying points
- Powder-coated steel grille lined with dust filter
- Active electronic protection fitted to prevent overload to H.F. units
- Crossovers optimized for balanced integration of drivers
- Speakon® connectors fitted
- 35mm pole mount socket
- All fittings rebated for easier stacking and arraying
- Steel bar handles fitted as standard
Specification
- Woofer 30cm (12")
- Tweeter 4.4cm (1.75") Titanium
- Power rms 300W
- Connectors 2 x Speakon® NL4
- Crossover frequency 2kHz
- Dispersion H: 90°, V: 40°
- Frequency response 60Hz - 18kHz (-3dB)
- Impedance 8 Ohms
- Power max. (5 mins) 500W
- SPL @ 1W/1m 97dB
- SPL max. 121dB (±3dB)
- Dimensions 586 x 405 x 405mm
- Weight 27.5kg
Trade information
| 170.209UK | |
|---|---|
| Barcode / EAN | 5015972029466 |
| Package type | Box Printed |
| Package dimensions | 520 x 520 x 675mm |
| Package weight | 27.25kg |
| Package quantity | 1 unit |
| Carton dimensions | 520 x 520 x 675mm |
| Carton weight | 27.25kg |
| Carton quantity | 1 package |
