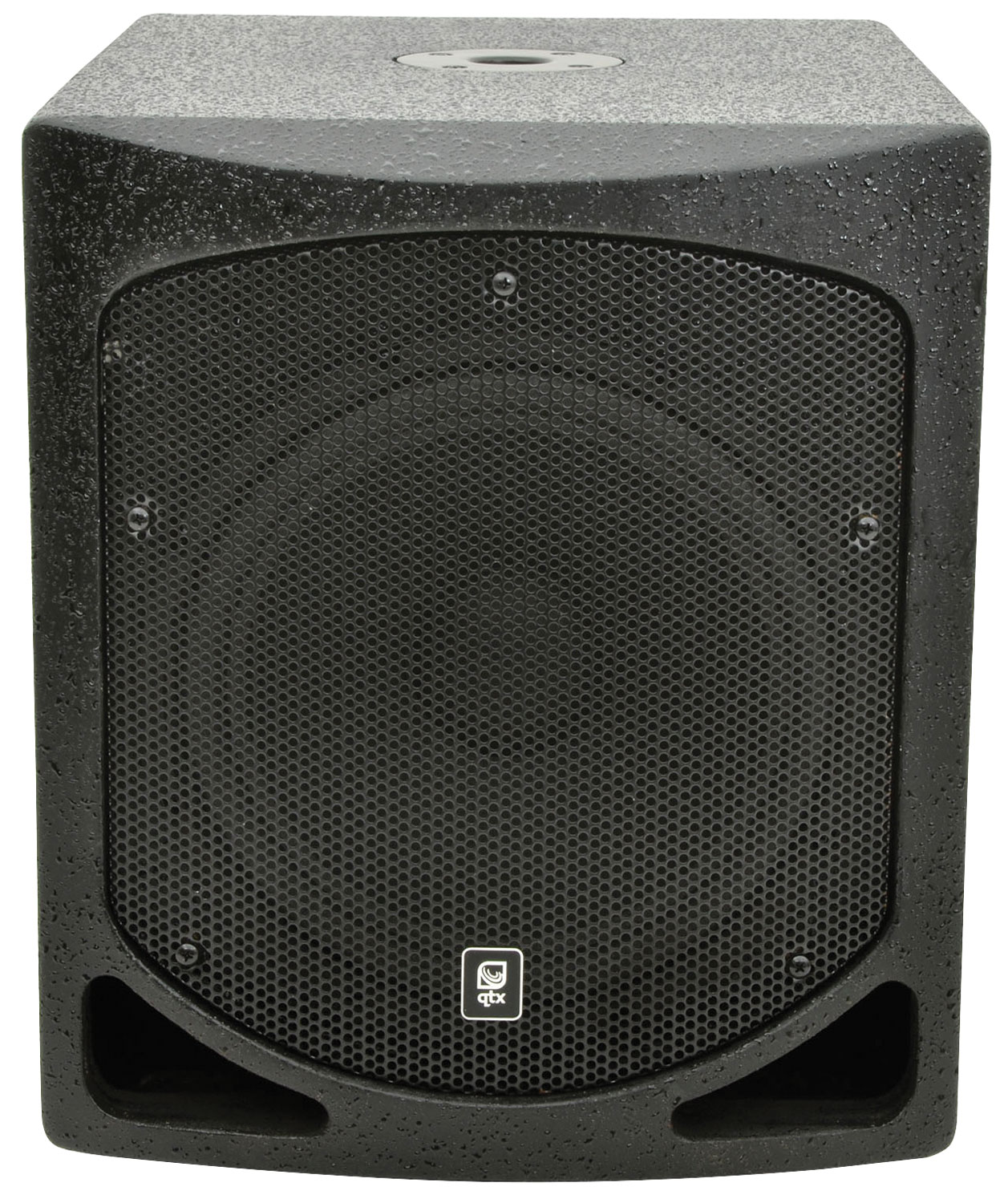

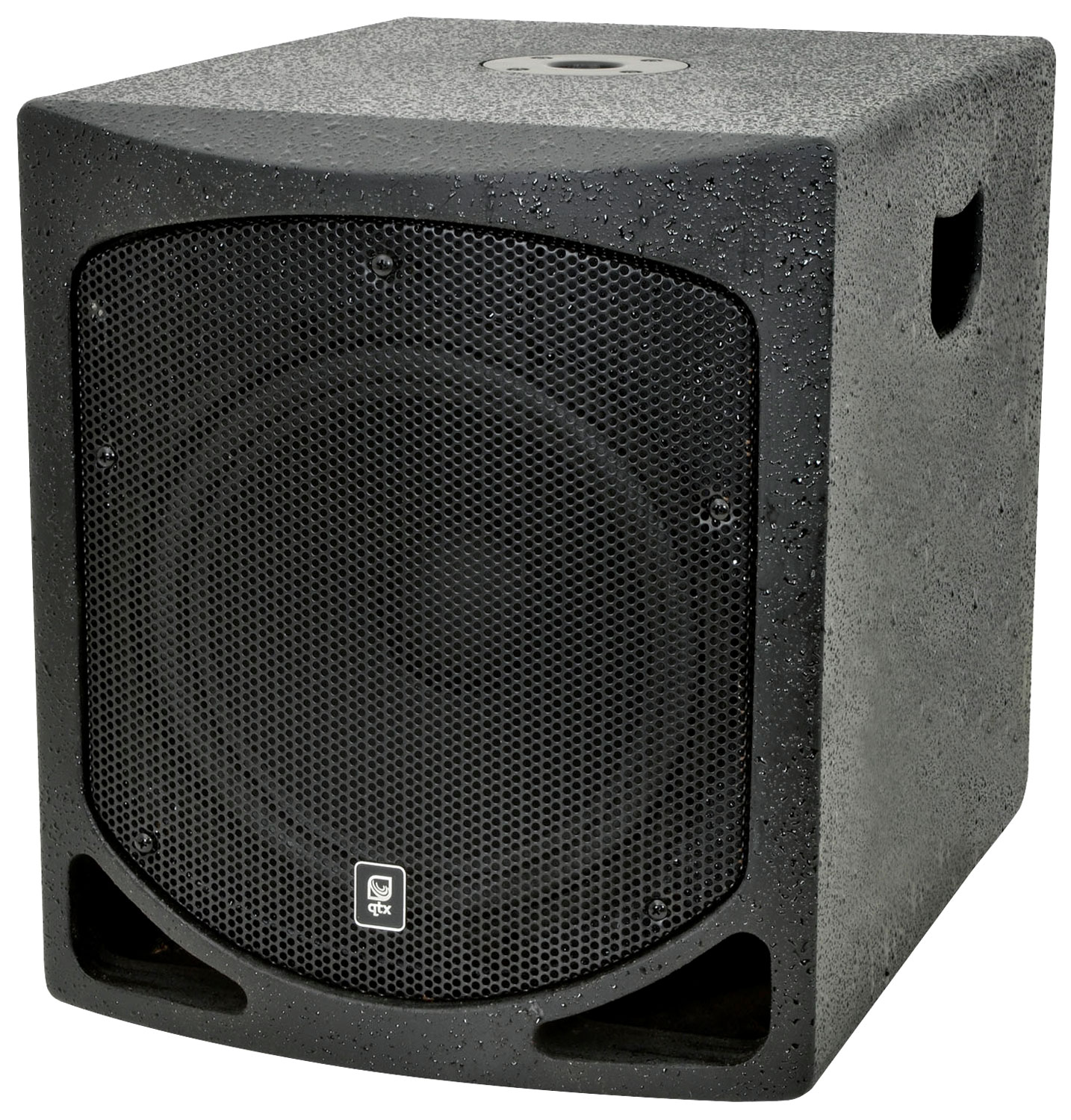

QLB Active Sub Cabinets
178.560UK
QLB12A
Active sub-woofer unit in sturdy sculpted wooden cabinet with texture painted finish.
- Routed carrying handles
- Adjustable low pass frequency
- Phase switch
| Description | |
|---|---|
|
178.560UK
QLB12A Active Sub 12in |
QLB Active Sub Cabinets
Active sub-woofer unit in sturdy sculpted wooden cabinet with texture painted finish.
- Routed carrying handles
- Adjustable low pass frequency
- Phase switch
- Compact ported design
- Includes 35mm top hat
Specification : Common
- Power supply 230Vac, 50Hz (IEC)
- Low pass frequency 40Hz - 150Hz

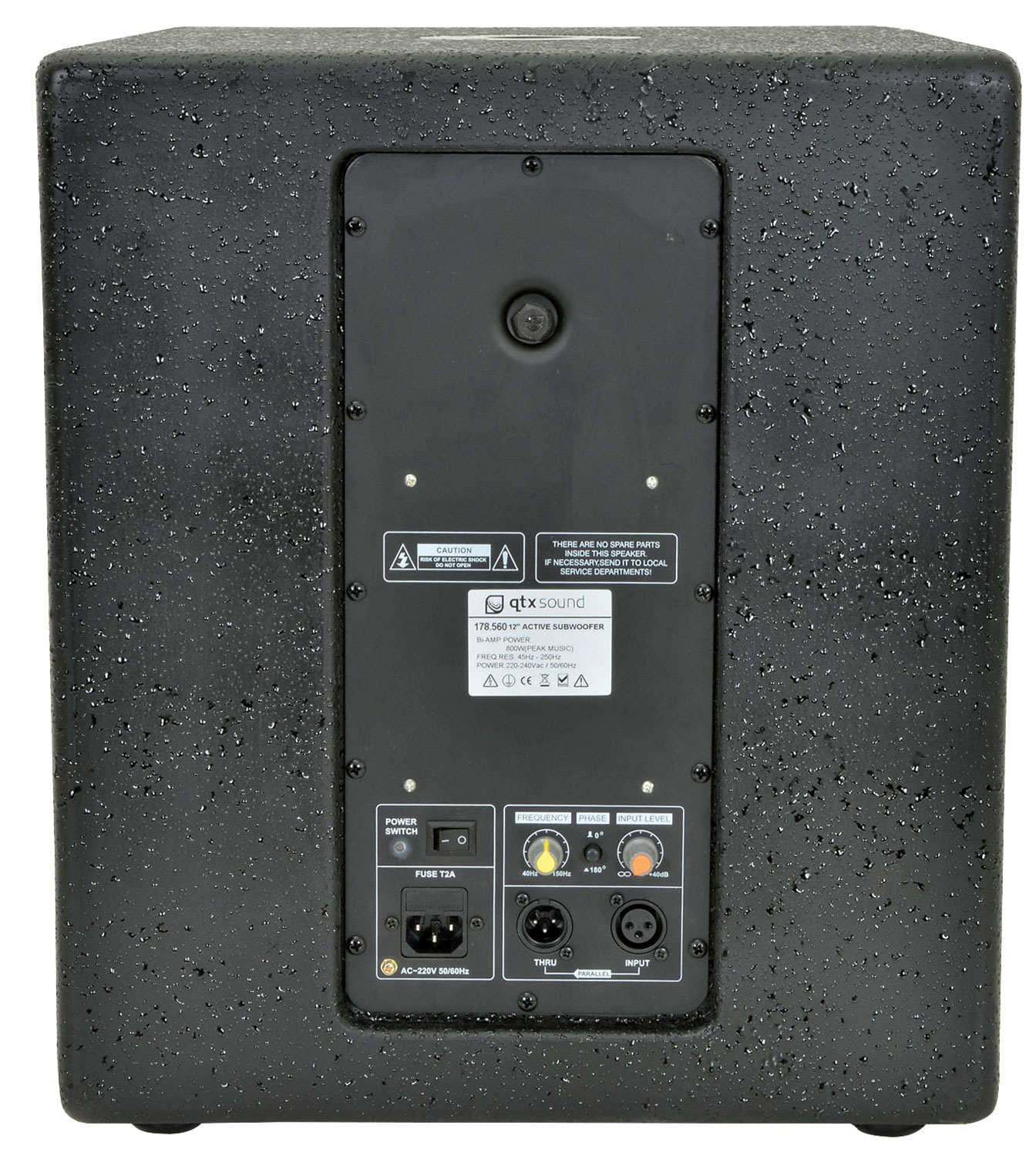

- Connections XLR line input, XLR line output
Specification : Versions
| 178.560UK | |
|---|---|
| Driver | 300mm (12'') |
| Output power rms | 150W |
| Output power peak | 800W |
| Dimensions | 470 x 480 x 600mm |
| Weight | 27kg |
Trade information
| 178.560UK | |
|---|---|
| Barcode / EAN | 5015972091807 |
| Package type | Box Printed |
| Package dimensions | 480 x 600 x 470mm |
| Package weight | 27.00kg |
| Package quantity | 1 unit |
| Carton dimensions | 480 x 600 x 470mm |
| Carton weight | 27.00kg |
| Carton quantity | 1 package |
Support : articles
Active speakers
Active speakers contain their own amplifier to drive the speaker, which will be matched by impedance and power handling. This makes them a simple solution for distributed audio systems.
