Heavy Duty 100V Round Horn Speakers

952.083UK H15V
Be the first to review

Heavy duty round PA horn speakers with a fibreglass compression driver and 100V transformer with a weatherproof ABS cover and reflex cone. Sound is projected from a spun aluminium flare which is an...

  • IPX6 waterproof
  • Sturdy aluminium & ABS construction
  • Selectable power tappings
Full description Find retailer
Description Version Packed
952.083UK
H15V Round Horn 8in 100V 15W 		8in, 15W Box Printed
952.089UK
H30V Round Horn 9.5in 100V 30W 		9.5in, 30W Box Printed

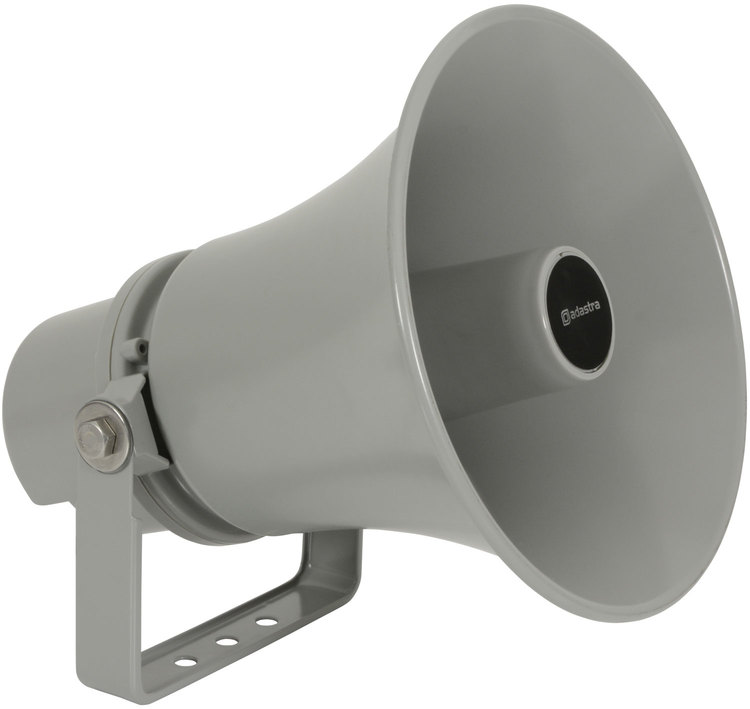

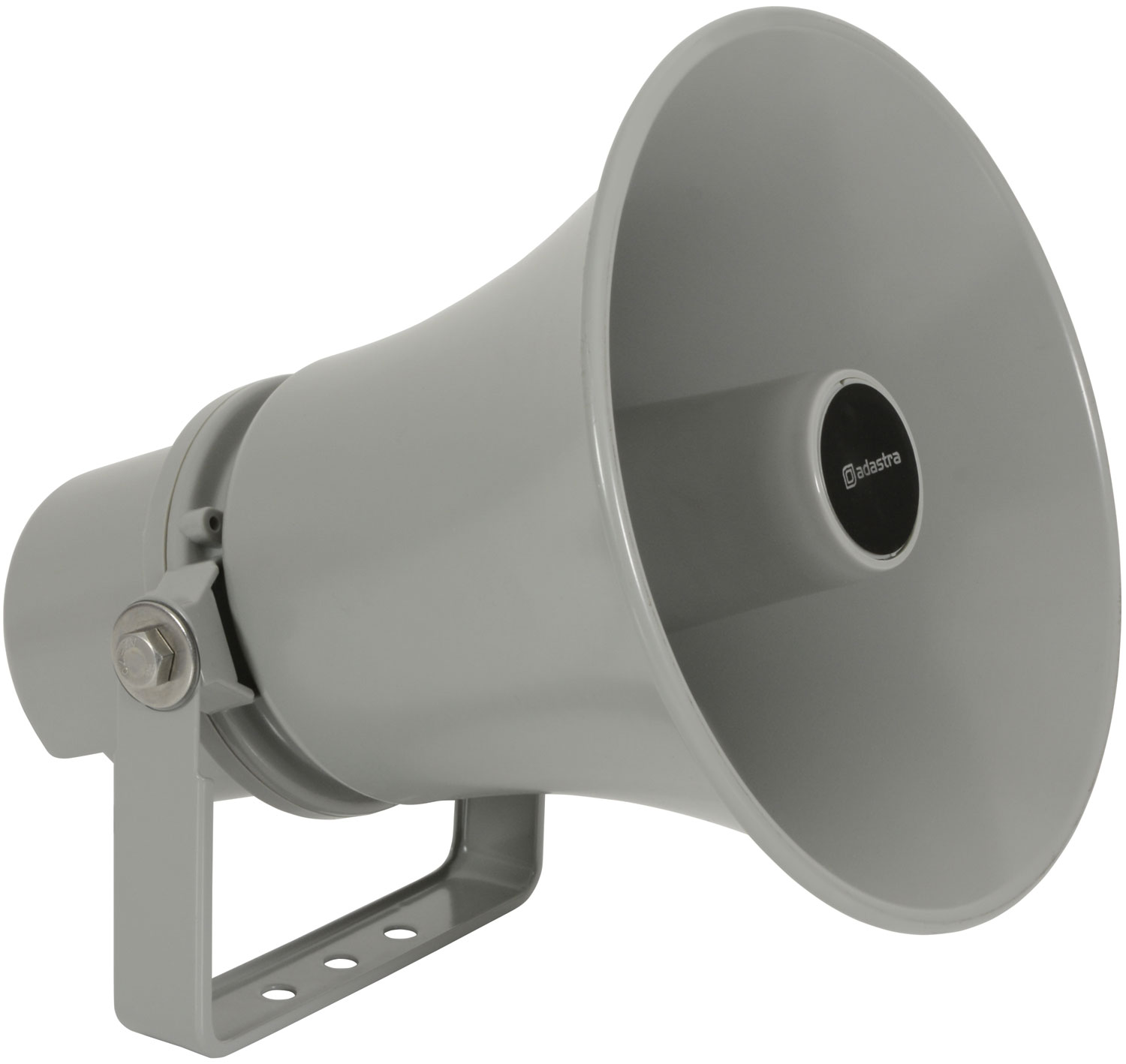

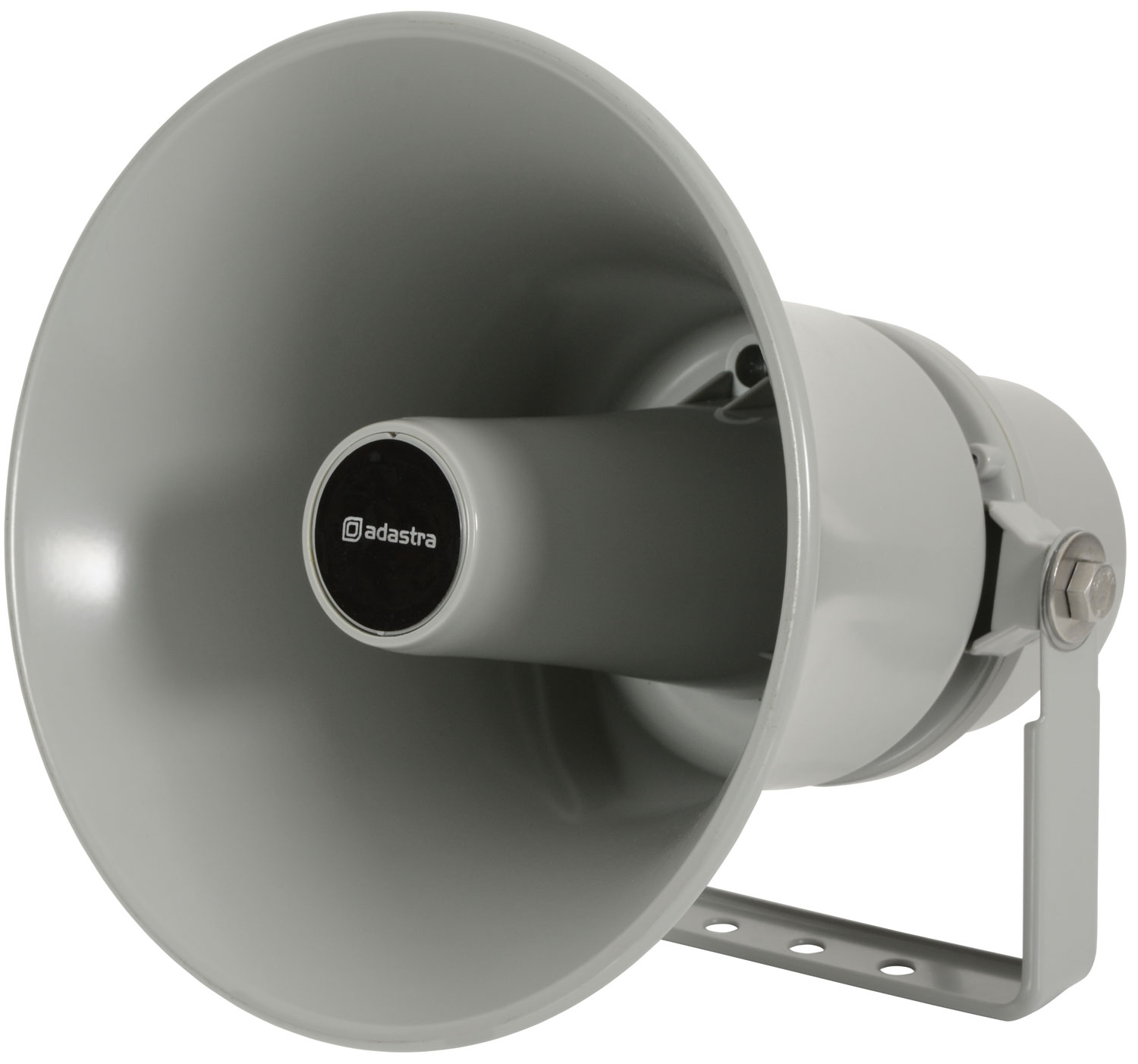

Heavy Duty 100V Round Horn Speakers

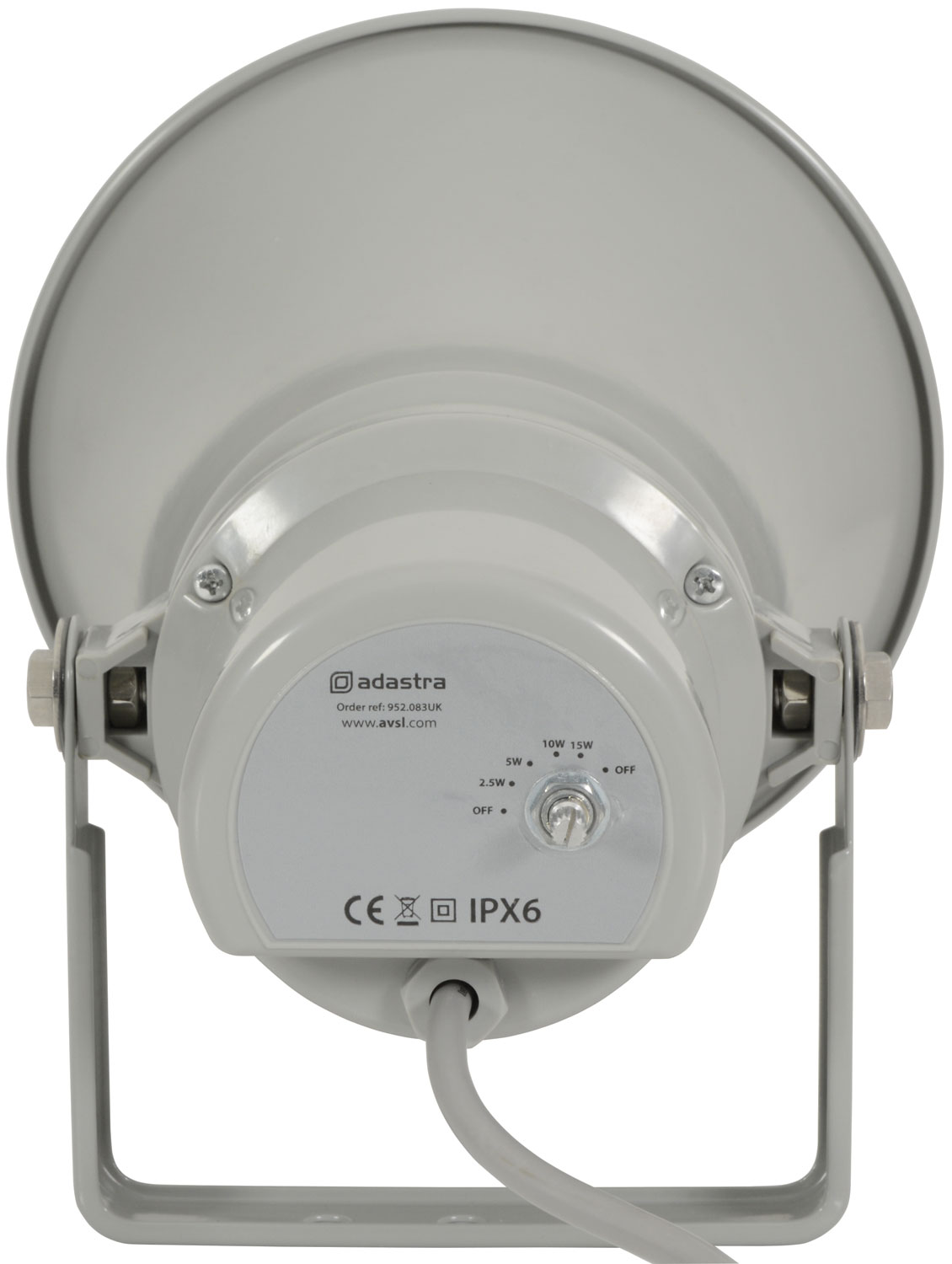

Heavy duty round PA horn speakers with a fibreglass compression driver and 100V transformer with a weatherproof ABS cover and reflex cone. Sound is projected from a spun aluminium flare which is angle adjustable on the mounting bracket. Power tappings are selected via a rotary switch at the rear with a 2-core cable for connection to a 100V amplifier. Built to withstand the elements and designed to deliver information and alerts in public outdoor areas.

  • IPX6 waterproof
  • Sturdy aluminium & ABS construction
  • Selectable power tappings

Specification : Common

  • Housing material Aluminium & ABS
  • IP rating IPX6

Specification : Versions

  952.083UK 952.089UK
Tappings 2.5W, 5W, 10W, 15W 5W, 10W, 15W, 30W
Power handling : rms 15W 30W
Sensitivity 106dB 107dB
Frequency response 450Hz - 5kHz 380Hz - 6.5kHz
Dimensions 240 x 205mmØ 315 x 246mmØ
Weight 1.42kg 2.18kg

Trade information

  952.083UK 952.089UK
Barcode / EAN 5015972191774 5015972191781
Package type Box Printed Box Printed
Package dimensions 210 x 250 x 200mm 255 x 300 x 255mm
Package weight 1.68kg 2.62kg
Package quantity 1 unit 1 unit
Carton dimensions 415 x 435 x 265mm 530 x 530 x 320mm
Carton weight 7.50kg 11.00kg
Carton quantity 4 packages 4 packages

In the box

The box for this item contains :

  • 100V PA horn speaker
